Water Jet Cutting Metal Intricate Designs No Heat Affected Zone Precision

Imagine needing to cut a complex pattern, perhaps a delicate filigree or a precise gear, out of a thick piece of tough metal like stainless steel or titanium. Traditional methods involving heat, like laser or plasma cutting, can introduce problems. The intense heat can warp the material, alter its temper, or create hardened edges that make further processing difficult. This is where the remarkable technology of abrasive water jet cutting steps in, offering a solution that slices through metal with incredible accuracy, leaving behind clean edges and completely undisturbed material properties.

Unleashing the Power of Pressurized Water

At its core, water jet cutting employs a deceptively simple principle: erosion accelerated to an industrial scale. It starts with ordinary tap water, which is then pressurized to extreme levels – often ranging from 30,000 to over 90,000 pounds per square inch (PSI). This ultra-high-pressure water is forced through a tiny orifice, typically made of sapphire, diamond, or ruby, creating a hair-thin beam travelling at supersonic speeds, sometimes up to three times the speed of sound. For cutting harder materials like metals, stone, or composites, a crucial extra step is involved. Just after the water exits the orifice but before it hits the material, a controlled amount of fine abrasive garnet sand is drawn into the water stream via a venturi effect within a mixing chamber and nozzle. This mixture of high-velocity water and abrasive particles becomes a potent cutting tool. It’s not the water itself that cuts the metal, but the millions of tiny abrasive grains striking the material surface at incredible speed, eroding it away along a very fine path.

The Mechanics of a Clean Cut

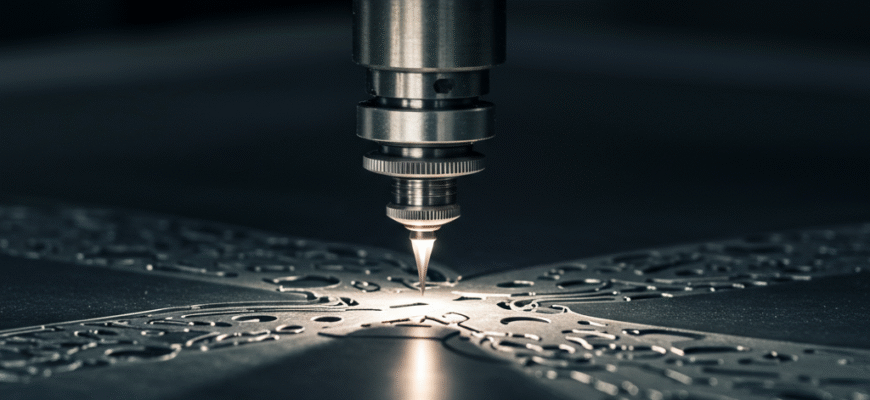

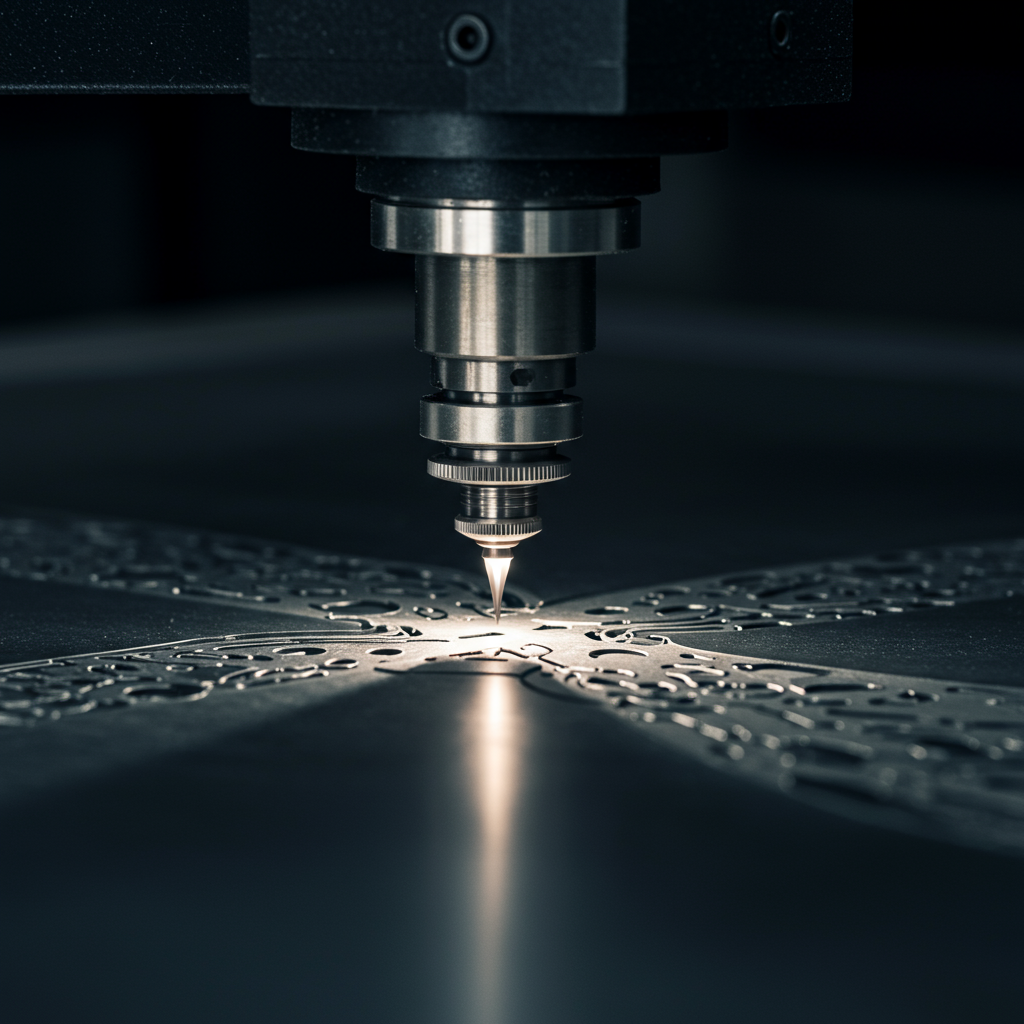

The cutting head, holding the orifice and mixing nozzle, is typically mounted on a multi-axis gantry system controlled by sophisticated computer numerical control (CNC) software. This allows the cutting head to move precisely along complex paths defined by a digital design file (like a CAD drawing). The machine controller manages the water pressure, abrasive flow rate, and cutting speed to optimize the cut quality for the specific material and thickness being processed. Unlike thermal cutting methods, the water jet process generates virtually no heat. The water stream itself carries away the minimal heat generated by the friction of the abrasive particles. This “cold cutting” characteristic is one of the most significant advantages of water jet technology, particularly when dealing with metals.

Precision Engineering: Hitting the Mark Every Time

Water jet cutting is renowned for its high precision and ability to hold tight tolerances. Modern systems can achieve positional accuracy often measured in the thousandths of an inch. The actual cut width, known as the kerf, is very narrow, typically ranging from 0.020 to 0.050 inches (0.5 mm to 1.3 mm), depending on the nozzle configuration and cutting parameters. This narrow kerf allows for:

• Minimal Material Waste: Less material is turned into swarf (the removed material), making the process more economical, especially with expensive alloys.
• Part Nesting: Components can be nested closely together on a single sheet of raw material, maximizing yield.
• Sharp Internal Corners: Unlike milling cutters which leave a radius, water jets can produce very sharp internal corners limited only by the stream diameter.

The precision is consistent across a wide range of material thicknesses, from thin foils to metal plates several inches thick. Advanced systems even incorporate taper compensation features, where the cutting head dynamically tilts slightly to counteract the natural tendency of the jet stream to create a slight V-shape edge on thicker materials, resulting in perfectly perpendicular edges when required.

Mastering Intricate Designs Without Compromise

The combination of CNC control, a narrow kerf, and the ability to cut in any direction makes water jet cutting exceptionally suited for intricate and complex designs that would be challenging or impossible for other methods. Think of detailed logos cut into metal signage, custom sprockets with fine teeth, delicate artistic sculptures, or complex interlocking parts for machinery. Because the cutting force exerted by the water jet is primarily downwards with very little side force, minimal clamping is often needed, even for delicate or thin parts. This prevents distortion or damage to the workpiece during the cutting process. It allows for the creation of features like thin walls, fine meshes, and complex internal cutouts without fear of buckling or warping the surrounding material.

Verified Precision and Integrity: Abrasive water jet cutting stands out for its ability to produce highly accurate metal components with complex geometries. Critically, it operates as a cold-cutting process, meaning no heat-affected zone (HAZ) is created. This ensures the material’s structural integrity and properties remain unchanged right up to the cut edge, a vital factor for demanding aerospace, medical, and engineering applications.

The Critical Advantage: No Heat Affected Zone (HAZ)

This is perhaps the single most compelling benefit of water jet cutting for metals. Thermal processes like laser, plasma, and oxy-fuel cutting introduce intense heat into the material being cut. This heat dissipates into the surrounding area, creating what is known as the Heat Affected Zone (HAZ). Within the HAZ, the metal’s microstructure and properties can be significantly altered:

• Hardening: The material near the cut edge can become hardened and brittle, making subsequent machining operations like drilling or tapping difficult and potentially leading to tool breakage.
• Softening/Annealing: Depending on the metal and the heat input, the material might lose its temper or strength near the cut.
• Distortion and Warping: Uneven heating and cooling can cause internal stresses, leading to warping or bowing of the part, especially with thinner sheets.
• Microstructural Changes: The fundamental grain structure of the metal can change, potentially impacting its fatigue life, corrosion resistance, or other critical properties.
• Dross Formation: Thermal cutting often leaves behind resolidified molten metal (dross) on the bottom edge of the cut, requiring secondary cleaning operations.

Water jet cutting completely eliminates the HAZ. Since it’s an erosive process driven by mechanical force rather than thermal energy, the temperature increase in the material is negligible. The cut edge retains the exact same properties, temper, and microstructure as the parent material. This means:

• No thermal stress or distortion.
• No material hardening or softening.
• No changes to inherent material properties.
• No dross formation, resulting in a clean, satin-smooth edge finish.
• Often eliminates the need for secondary finishing operations.

This makes water jet cutting ideal for heat-sensitive alloys, pre-hardened materials, or components where maintaining the original material characteristics right up to the edge is paramount for performance and safety.

Versatility Across Metals and Beyond

Another significant strength of water jet cutting is its material versatility. The same machine, often with only minor adjustments to cutting speed, pressure, and abrasive flow rate, can cut a vast array of materials:

• All Metals: Including steel (mild, stainless, tool), aluminum, titanium, copper, brass, bronze, nickel alloys, exotic alloys, and hardened metals.
• Composites: Such as carbon fiber reinforced plastics (CFRP) and fiberglass.
• Stone and Tile: Granite, marble, ceramic, porcelain.
• Glass: Though care must be taken to avoid cracking with lower pressure starts.
• Plastics and Rubber: Acrylic, polycarbonate, nylon, neoprene.
• Foam and Insulation Materials.

This versatility makes it an invaluable tool for job shops and manufacturers dealing with diverse material requirements. It eliminates the need for multiple specialized cutting machines and simplifies the production workflow.

Comparing Apples and Oranges: Water Jet vs. Thermal Cutting

While laser and plasma cutting are faster for certain applications (typically thinner metals), water jet holds distinct advantages:

• No HAZ: As extensively discussed, this is the key differentiator for quality-critical parts.
• Thicker Materials: Water jets can cut significantly thicker metals (6 inches or more) than most practical laser or plasma systems, while maintaining good edge quality.
• Reflective Materials: Highly reflective metals like aluminum or copper can pose challenges for lasers, but are easily cut by water jets.
• No Toxic Fumes: While garnet dust needs management, water jet doesn’t produce the potentially hazardous fumes associated with vaporizing metal in thermal processes.
• Material Range: Water jet’s ability to cut non-metals broadens its application scope considerably.

However, water jet cutting is generally a slower process compared to laser or plasma on thinner gauge metals, and the initial equipment cost can be substantial. The use of garnet abrasive also adds an operational cost and requires proper handling and disposal or recycling.

Where Precision Water Jet Cutting Shines

The unique combination of precision, intricate capability, no HAZ, and material versatility makes water jet cutting the preferred or enabling technology in numerous fields:

• Aerospace: Cutting high-strength alloys and composites for airframe components, engine parts, and brackets where material integrity is non-negotiable.
• Automotive: Prototyping, custom parts, cutting interior components, and frame elements.
• Architecture and Design: Creating decorative metal panels, custom flooring inlays (metal and stone), intricate signage, and structural art pieces.
• Tool and Die Making: Cutting hardened tool steels accurately without affecting their temper.
• Prototyping and Short Runs: Quickly producing functional prototypes or small batches without the need for expensive tooling.
• Art and Sculpture: Enabling artists to realize complex designs in metal, stone, and glass.
• General Fabrication: Providing a high-quality, precise cutting solution for job shops serving diverse industries.

In conclusion, abrasive water jet cutting offers a powerful and precise method for shaping metals, especially when intricate designs and the absolute preservation of material properties are required. By using a high-velocity stream of water and abrasive particles, it slices through even the toughest materials without introducing heat, eliminating the problematic Heat Affected Zone. This cold-cutting process ensures dimensional accuracy, maintains material integrity right to the edge, and allows for the creation of complex geometries that would be difficult or impossible with thermal methods. While potentially slower than some alternatives on thin materials, its versatility, precision, and HAZ-free results make water jet cutting an indispensable technology for demanding applications across a multitude of industries.
