Content
The Heart of the Hot Shop
A hot glass studio, often called a “hot shop,” is a specialized environment built around extreme heat. Understanding its key components is crucial to grasping the process.The Furnace
This is the primary crucible, a heavily insulated chamber running continuously, often 24/7, to keep a large batch of glass in a molten state. Temperatures inside typically hover around 2000-2100 degrees Fahrenheit (1090-1150 Celsius). The glass within has the consistency of thick honey or molasses, ready to be gathered.The Glory Hole
Think of this as a reheating furnace. As the glass artist works, the piece inevitably cools and stiffens. The glory hole is a smaller, cylindrical furnace, usually open at one or both ends, used to quickly bring the glass back up to a workable temperature. It’s a constant back-and-forth between the bench and the glory hole.The Annealer
Perhaps the unsung hero of the hot shop, the annealer (or annealing oven) is essential for the survival of the finished piece. It’s a digitally controlled kiln used to cool the glass down very slowly over many hours, sometimes even days for large pieces. This controlled cooling relieves internal stresses built up during the rapid temperature changes of the blowing process, preventing the glass from cracking or shattering later.The Bench
This is the glassblower’s primary workstation. It features a seat and rails (often metal) upon which the blowpipe or punty rests and rolls. Tools are kept within easy reach, allowing the artist to shape the glass while constantly rotating the pipe to counteract gravity.Essential Tools of the Trade
Glassblowing requires a specific set of tools, many of which have remained largely unchanged for centuries:- Blowpipe: A hollow steel tube, typically 4-5 feet long, used to gather molten glass from the furnace and through which the artist blows air to inflate the glass bubble.
- Punty (or Punty Rod): A solid steel rod, used primarily to transfer the piece from the blowpipe for shaping the opening or bottom. A small amount of molten glass acts as ‘glue’ to attach the punty to the base of the piece.

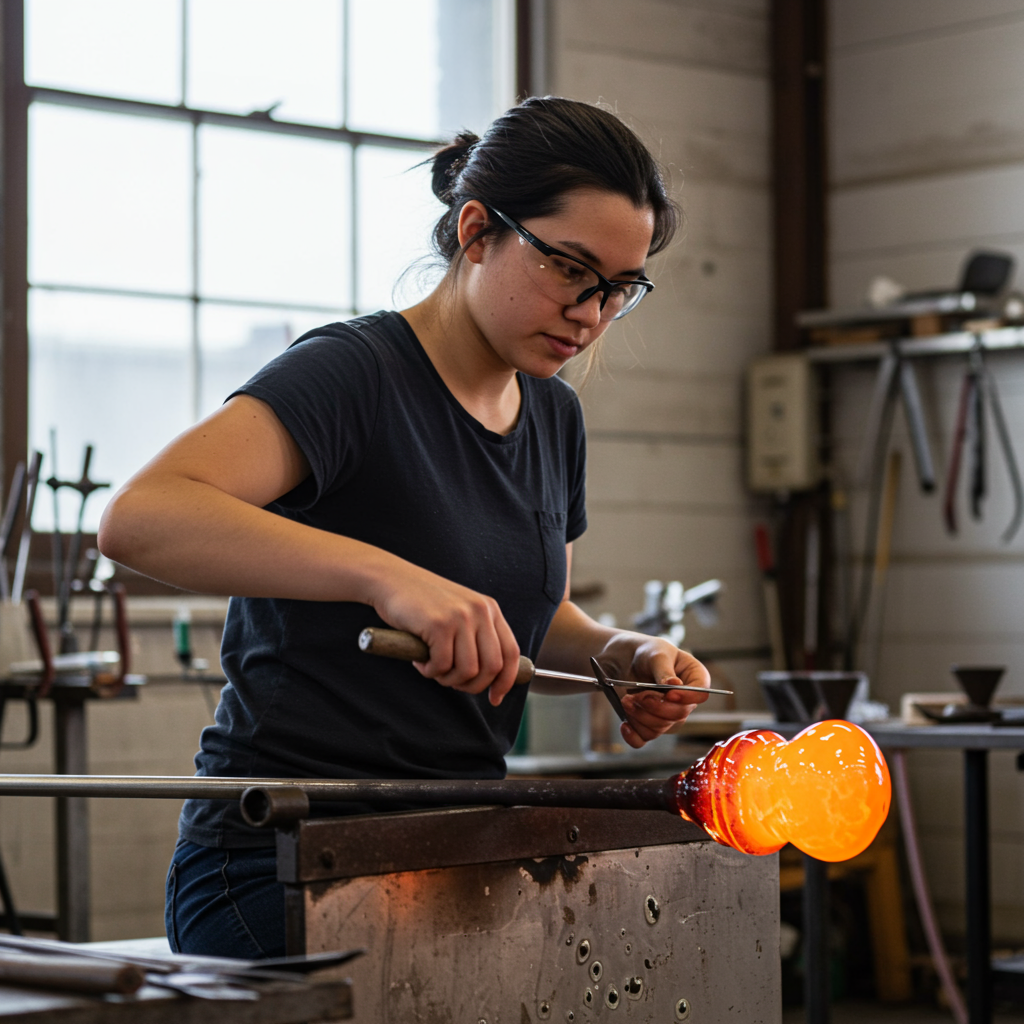

- Jacks: A tweezer-like tool with two metal blades, used for constricting, necking in, or scoring the glass. Crucial for shaping and preparing for detachment.
- Shears: Heavy-duty shears used for cutting hot glass, especially trimming excess material or creating specific cuts.
- Tweezers: Used for pulling, pinching, or applying small decorative bits of glass.
- Wooden Blocks: Hand-held blocks of fruitwood (like cherry), soaked in water, used to shape the initial gather of molten glass smoothly. The water creates a layer of steam that prevents the wood from burning instantly and allows the glass to glide over the surface.
- Paddles: Flat tools, often made of wood or graphite, used for flattening bottoms or sides of a piece.
- Newspaper Pad: A thick pad of folded, wet newspaper used similarly to a wooden block for shaping, especially useful for larger forms.
Understanding Molten Glass
Working with hot glass is unlike handling any other material. At furnace temperatures, it’s a viscous liquid, primarily composed of silica (sand), soda ash (to lower the melting point), and lime (for stability). Its behavior is dictated by temperature and gravity. Too hot, and it becomes uncontrollably runny; too cool, and it becomes rigid and impossible to shape, risking cracks. The glassblower must constantly manage the heat by rotating the piece, utilizing tools efficiently, and making timely trips to the glory hole. It demands focus, rhythm, and an intuitive feel for the material’s state.The Fundamental Steps of Creation
While creating complex pieces involves intricate techniques, the basic process follows a general flow.Gathering and Marvering
The process begins by dipping the end of the blowpipe into the furnace and rotating it to collect a ‘gather’ of molten glass. The amount gathered depends on the intended size of the piece. This initial gather is then often rolled on a flat steel table called a marver. Marvering cools the outer ‘skin’ of the glass slightly, making it more uniform and allowing for better control when blowing the first bubble.Introducing the Bubble
Once the gather is marvered and slightly shaped (often using a wooden block), the glassblower blows gently into the blowpipe. This creates the initial bubble, the hollow core around which the vessel or object will be formed. This first inflation is critical for establishing symmetry.Shaping and Reheating
Now the real shaping begins. Using the bench rails for support and rotation, the artist employs jacks, blocks, paddles, and even controlled puffs of air while manipulating the piece’s orientation to gravity. Maybe they use jacks to create a constriction (a ‘neck’), or a wet wooden block to smooth and expand the form. Because the glass cools rapidly, frequent reheating in the glory hole is essential to keep it pliable. This cycle of shaping and reheating repeats many times.Adding Visual Interest
Color and pattern can be introduced in various ways. Small chips of colored glass (frit) or powders can be rolled onto the hot gather near the beginning of the process. Pre-made rods of colored glass (cane) or patterned slices (murrine) can also be picked up and incorporated into the surface, melting in to create intricate designs. These techniques add layers of complexity and beauty.The Punty Transfer
For most vessel forms, there comes a point where the piece needs to be detached from the blowpipe so the top edge or lip can be finished. This requires the punty transfer. An assistant (or sometimes the artist themselves) gathers a small amount of hot glass on the end of a punty rod. This small gather is carefully attached to the bottom center of the glass piece still on the blowpipe. Once secure, a sharp tap near the connection point on the blowpipe, often after scoring with jacks, breaks the piece free from the blowpipe. It is now held by the punty, allowing access to the opening.Finishing Touches and the Crucial Cool-Down
With the piece attached to the punty, the artist reheats the opening and uses jacks, shears, and tweezers to shape the lip, perhaps flaring it out or rolling it over for a smooth edge. Once the final shape is achieved, the piece is ready for the annealer. The connection point where the punty is attached is carefully heated with a small torch to soften the ‘glue’ bit, and the piece is gently knocked off the punty directly onto the annealer’s floor (which is often covered in refractory material or kiln wash). The door is closed, and the slow cooling program begins.Working with hot glass is inherently dangerous. Studio temperatures are extreme, and molten glass can cause severe burns instantly. Sharp, broken glass is also a constant hazard. Always undertake glass blowing under the supervision of experienced professionals in a properly equipped studio, and wear appropriate safety gear, including eye protection and heat-resistant gloves when necessary. Never attempt this without proper training.
