Engraving Glass Techniques Diamond Burrs Hand Rotary Tools Detailed Images

Bringing intricate designs to life on the smooth, unforgiving surface of glass is a captivating craft. Unlike softer materials, glass demands precision and the right tools. Among the most accessible and versatile methods for the home artist or craftsperson is using a hand rotary tool equipped with diamond burrs. This combination allows for remarkable detail and control, transforming plain glass objects into personalized works of art. The magic lies in the interaction between the high-speed rotation of the tool and the hardness of the diamond grit bonded to the burr’s tip. It’s not cutting in the traditional sense, but rather a process of grinding or etching away the glass surface micro-layer by micro-layer. Mastering this requires understanding the tools, the techniques, and a healthy dose of practice.

The Powerhouse: Hand Rotary Tools

Often referred to by popular brand names like Dremel, a hand rotary tool is essentially a small, high-speed motor housed in a pen-like or slightly larger body. Its key feature is the collet or chuck at the business end, designed to hold various bits, including the essential diamond burrs. These tools are favoured for their:

• Variable Speed Control: This is crucial. Different speeds are required for different techniques, burr types, and glass thicknesses. Lower speeds often provide more control for fine lines, while higher speeds might be used for removing larger areas or initial shaping.
• Manoeuvrability: Their relatively small size and weight allow for freehand drawing directly onto the glass surface, mimicking the feel of a pen or pencil.
• Versatility: Beyond engraving, these tools can often be used for polishing, sanding, or cutting other materials with different attachments, making them a valuable addition to any craft toolkit.

Choosing a rotary tool often involves considering comfort (how it feels in your hand during prolonged use), power (sufficient torque to avoid bogging down), and the reliability of its speed control. Corded models offer consistent power, while cordless versions provide greater freedom of movement, though battery life can be a factor.

The Cutting Edge: Diamond Burrs Explained

Why diamond? Diamond is the hardest known natural material, making it exceptionally effective at abrading glass without wearing down quickly itself. Diamond burrs consist of a metal shank (the part that fits into the rotary tool) and a shaped tip coated with fine diamond particles (grit). The size of these particles and the shape of the tip dictate the kind of mark it will make on the glass.

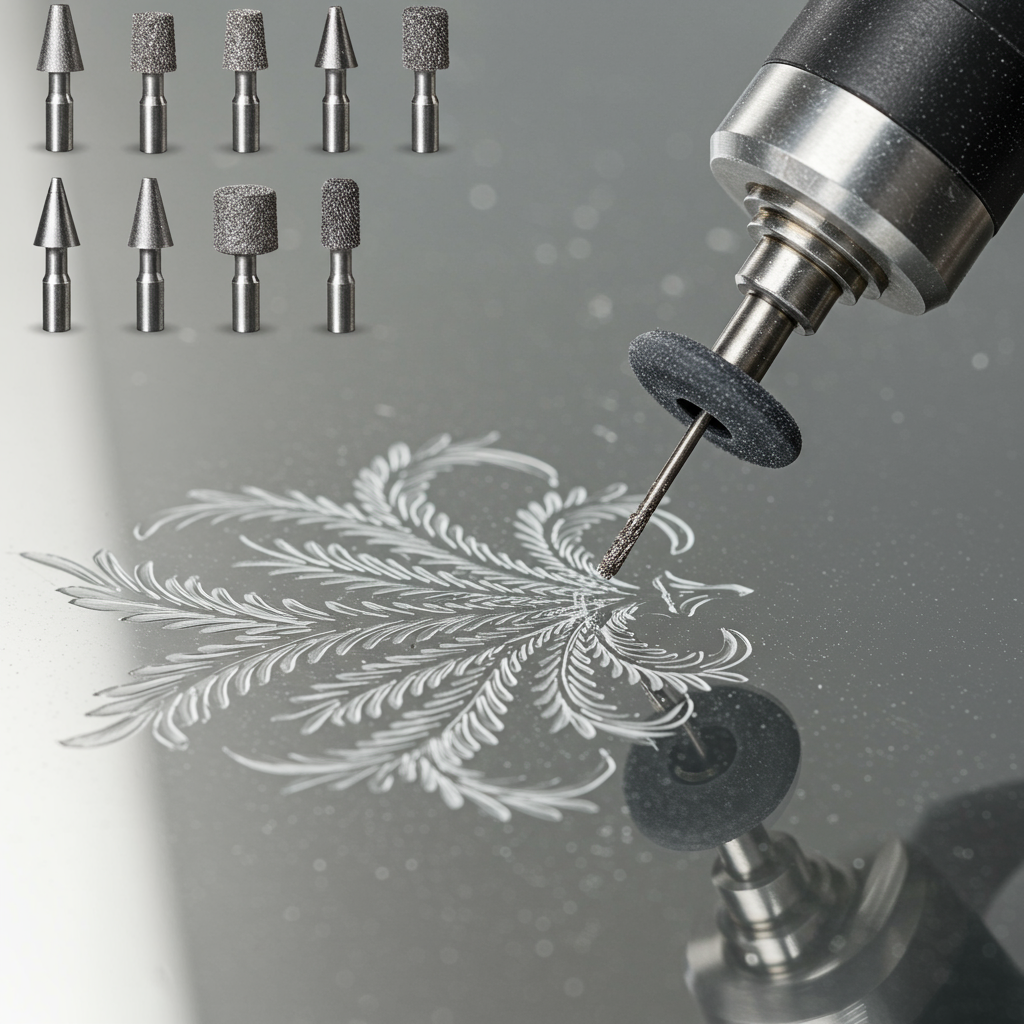

Common Diamond Burr Shapes and Their Uses

Imagine a painter’s palette of brushes; diamond burrs offer a similar range of possibilities for the glass engraver. Here are some fundamental shapes and what they excel at:

• Ball Burr: Perhaps the most versatile. Small ball burrs are excellent for drawing fine lines and initial outlines. Larger ball burrs can be used for creating texture, shading rounded areas, or hollowing out small sections. The mark is typically a rounded groove.
• Pointed/Tapered Burr: Ideal for sharp, crisp lines and intricate details, like lettering or cross-hatching. The very fine tip allows for precise work in tight corners. Think of it as the fine-liner pen of glass engraving.
• Cylinder Burr: Available with flat or rounded ends. Flat-ended cylinders are good for smoothing flat areas or creating broad, straight lines. Rounded-end cylinders offer a softer line and can be used for shading larger, gentle curves.
• Flame Burr: This shape tapers to a point but has a wider base, resembling a candle flame. It’s useful for shading, creating leaf shapes, or working along curved edges, offering a blend of line and area coverage.
• Inverted Cone Burr: Less common for fine art engraving, but can be used for undercutting or creating specific types of grooves where the widest part of the cut is below the surface.

The grit size also plays a role. Coarser grit burrs remove material faster but leave a rougher finish. Finer grit burrs remove less material per pass but create smoother lines and are better for subtle shading and detail work. Often, engravers start with a medium or coarse burr for outlines and rough shaping, then move to finer burrs for refining details and achieving smooth tonal transitions.

Verified Information: Diamond burrs work through abrasion, grinding away the glass surface. The shape of the burr directly influences the type of line or texture created. Always match the burr shape to the specific task, like using a pointed burr for fine lines and a ball or cylinder burr for shading.

Preparing for Engraving: Safety and Setup

Before the satisfying whir of the rotary tool begins, preparation is key. Safety should always be the top priority when working with glass and high-speed tools.

Essential Safety Gear

• Eye Protection: Non-negotiable. Always wear wrap-around safety glasses or a full face shield. Tiny shards of glass can fly off at high speed.
• Dust Mask: Engraving creates fine glass dust (silica dust), which is harmful if inhaled. A well-fitting respirator or dust mask rated for fine particles (like N95) is crucial.
• Gloves (Optional but Recommended): While some find they reduce dexterity, thin work gloves can protect against accidental slips and minor cuts from glass edges.

Preparing the Glass and Workspace

1. Clean the Glass: Any grease, fingerprints, or dirt on the glass surface can interfere with the engraving process and potentially cause the burr to skip. Clean the glass thoroughly with glass cleaner or isopropyl alcohol and dry it with a lint-free cloth.
2. Transfer Your Design: You can draw freehand, but for specific patterns, transferring a design is helpful. Methods include:
   • Taping a paper pattern *inside* clear glass and tracing the lines from the outside.
   • Using carbon transfer paper (place it between your pattern and the glass, then trace the pattern).
   • Drawing directly onto the glass with a marker (like a Sharpie – the ink will be ground away as you engrave).
3. Secure the Glass: Small items might be held carefully by hand (wearing gloves helps grip), but larger or flat pieces should be placed on a non-slip mat or padded surface (like a towel or foam) to prevent movement during engraving.
4. Good Lighting: Proper illumination is essential to see the fine details you are creating.

Important Information: Never compromise on safety. Flying glass particles pose a serious risk to eyes, and inhaling glass dust can cause long-term respiratory damage. Always wear appropriate eye protection and a dust mask when engraving glass with a rotary tool. Work in a well-ventilated area.

Mastering the Technique: Bringing Glass to Life

With preparation complete, the engraving can begin. It’s a process that rewards patience and a light touch.

Holding the Tool and Controlling Pressure

Hold the rotary tool like a pen or pencil for maximum control, especially for detailed work. Find a comfortable grip that allows for fluid movement. Rest your hand or wrist on the work surface or the glass piece itself (if large enough) for stability. The key is to let the speed of the tool do the work. Avoid pressing hard; excessive pressure can cause the burr to grab or jump, potentially chipping the glass or breaking the burr tip. It also generates more heat. Use light, consistent pressure and make multiple passes if needed to deepen lines or remove more material.

Speed Settings

Start with a lower speed setting, perhaps mid-range, to get a feel for how the burr interacts with the glass. You can gradually increase the speed as you become more comfortable. Very high speeds can sometimes cause heat build-up, which can stress the glass, especially thinner pieces. Experiment on scrap glass to find the speeds that work best for you and your specific burrs.

Creating Lines and Outlines

Use a small ball burr or a pointed burr for outlines. Move the tool smoothly and steadily along your design lines. Think of it as sketching, but instead of lead, you’re leaving a frosted trail. For curves, rotate the glass piece if possible, rather than trying to twist your wrist into awkward positions. Keep your movements fluid to avoid jagged edges.

Shading and Texturing

This is where different burr shapes shine.

• Stippling: Use a small ball burr to create patterns of tiny dots. The closer the dots, the darker the shaded area appears.
• Hatching/Cross-Hatching: Use a pointed or small ball burr to draw fine parallel lines. Draw another set of lines crossing the first set for darker shading.
• Area Shading: Use larger ball burrs or cylinder burrs with light, overlapping strokes. Work in small sections, building up the tone gradually. Varying the pressure slightly (still keeping it light overall) and the density of your strokes creates different shades.

Visualise how light hits the object you’re depicting. Areas in shadow will require more engraving (appearing whiter/more frosted), while highlights might be left as clear glass or very lightly touched.

Adding Depth and Detail

Depth is created by removing more glass. This can be done by making multiple passes over an area or by using a slightly coarser burr initially. Be cautious, as removing too much material can weaken the glass. Fine details, like facial features or delicate patterns, often require the smallest pointed burrs and very careful control at lower speeds.

Tool Care for Longevity

Your diamond burrs will last longer with proper care. Glass dust can clog the diamond grit, reducing cutting efficiency. Periodically clean the burrs while working using a brass brush (while the tool is off!) or by running the burr into a block of specific burr-cleaning compound or even an old eraser at low speed. After use, clean them thoroughly. Store burrs carefully to prevent damage to the tips. Keep the rotary tool itself clean, ensuring vents are clear of dust for proper cooling. Follow the manufacturer’s instructions for any specific maintenance, like lubricating the chuck or checking brushes if applicable.

The Rewarding Path of Glass Engraving

Engraving glass with a hand rotary tool and diamond burrs opens up a world of creative possibilities. From simple monograms on drinkware to elaborate scenes on decorative panels, the technique allows for unique personalisation and artistry. While it requires patience to develop control and finesse, the fundamental process is accessible. Start with simple projects, practice consistently, always prioritise safety, and soon you’ll be transforming ordinary glass into something truly special, etched with your own unique touch.
